MILWAUKEE M18FHAC0540 18V SDS 40MM MAX FUEL HAMMER

Milwaukee M18 FUEL FHACO540-0C ONE-KEY™ 18V SDS-Max 40mm Rotary Hammer Drill Body Only with Carry Case

The Milwaukee M18 FUEL FHACO540-0C ONE-KEY™ 18V SDS-Max Rotary Hammer Drill is a powerful cordless solution for professional drilling and demolition applications. Delivering an impressive 8.1 Joules of impact energy, this heavy-duty rotary hammer provides the performance needed for demanding concrete drilling, chiselling, and breaking tasks while offering the freedom and convenience of cordless operation.

Powered by Milwaukee's advanced POWERSTATE™ brushless motor, REDLINK PLUS™ electronic intelligence, and compatible with M18™ REDLITHIUM™ batteries, the FHACO540-0C delivers exceptional power, runtime, and durability for professional use on the toughest jobsites.

The versatile 3-mode operation allows users to select between Rotary Hammer, Hammer Only, and Variolock modes, enabling the chisel to be positioned at the ideal working angle for maximum efficiency. Four selectable speed settings optimise drilling and chiselling performance across a wide range of applications.

For enhanced operator safety, AUTOSTOP™ anti-kickback technology automatically shuts the tool down during sudden bind-up situations, helping to reduce the risk of injury. Milwaukee's advanced Anti-Vibration System (AVS), together with the anti-vibration side handle, minimises vibration exposure and reduces user fatigue during prolonged use.

The integrated ONE-KEY™ platform provides cloud-based tool tracking, inventory management, and remote tool locking, helping professionals manage and secure their equipment more effectively.

Designed with comfort and durability in mind, the compact ergonomic body improves handling during extended operation, while the trigger safety lock provides safer transportation between jobs.

Compatible with the complete Milwaukee M18™ battery platform, this rotary hammer is supplied in a durable Milwaukee Carry Case and is ideal for professional contractors carrying out heavy-duty drilling, anchor installation, demolition, and structural concrete work.

Body Only: Supplied without battery or charger. Compatible with all Milwaukee M18™ REDLITHIUM™ batteries.

Key Features

• Delivers 8.1J impact energy (EPTA) for heavy-duty drilling and demolition
• High-performance POWERSTATE™ brushless motor
• 3 operating modes: Rotary Hammer, Hammer Only, and Variolock
• 4 speed settings for optimum drilling and chiselling performance
• AUTOSTOP™ anti-kickback technology improves user safety

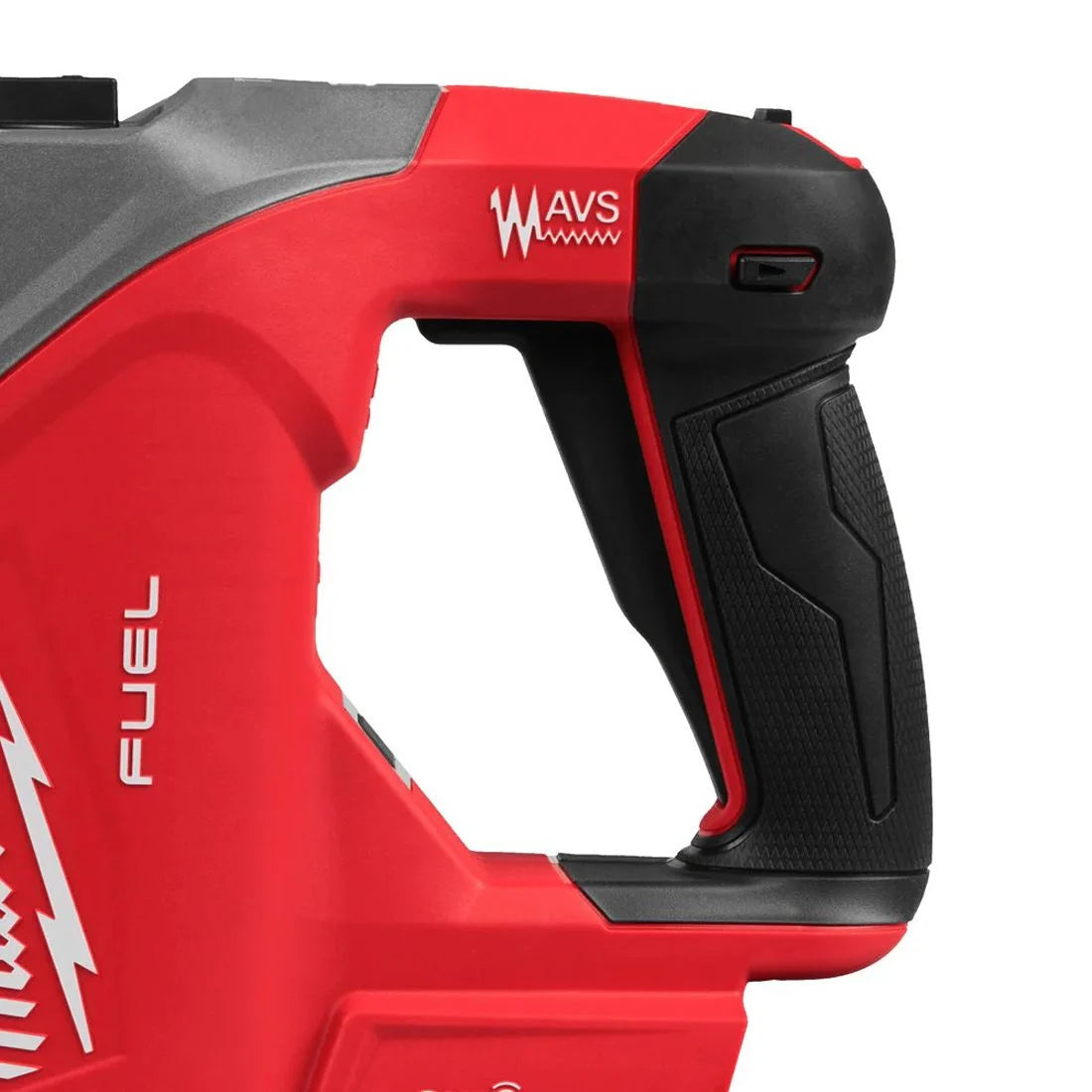

• Anti-Vibration System (AVS) reduces vibration and operator fatigue
• Anti-vibration side handle for greater comfort and control
• Integrated ONE-KEY™ tool tracking, inventory management, and remote locking
• Trigger safety lock for safer transport
• REDLINK PLUS™ electronic intelligence protects against overload
• Compatible with all Milwaukee M18™ REDLITHIUM™ batteries
• Ideal for concrete drilling, chiselling, demolition, anchor installation, and structural construction work
• Specifications
• Model: M18 FUEL FHACO540-0C ONE-KEY™
• Voltage: 18V
• Battery System: Milwaukee M18 FUEL™
• Tool Reception: SDS-Max
• Impact Energy (EPTA): 8.1J
• No Load Speed: 0–490rpm
• Full Load Hammer Rate: 3,300bpm
• Maximum Concrete Drilling Capacity: 40mm
• Speed Settings: 4

Noise & Vibration

• Sound Pressure Level: 99 dB(A)
• Sound Pressure Level Uncertainty: 3 dB(A)
• Sound Power Level: 107 dB(A)
• Sound Power Level Uncertainty: 3 dB(A)
• Vibration (Hammer Drilling into Concrete): 10.2m/s²
• Vibration Uncertainty: 1.5m/s²
• Vibration (Chiselling): 7.7m/s²
• Vibration Uncertainty: 1.5m/s²

Kit Includes

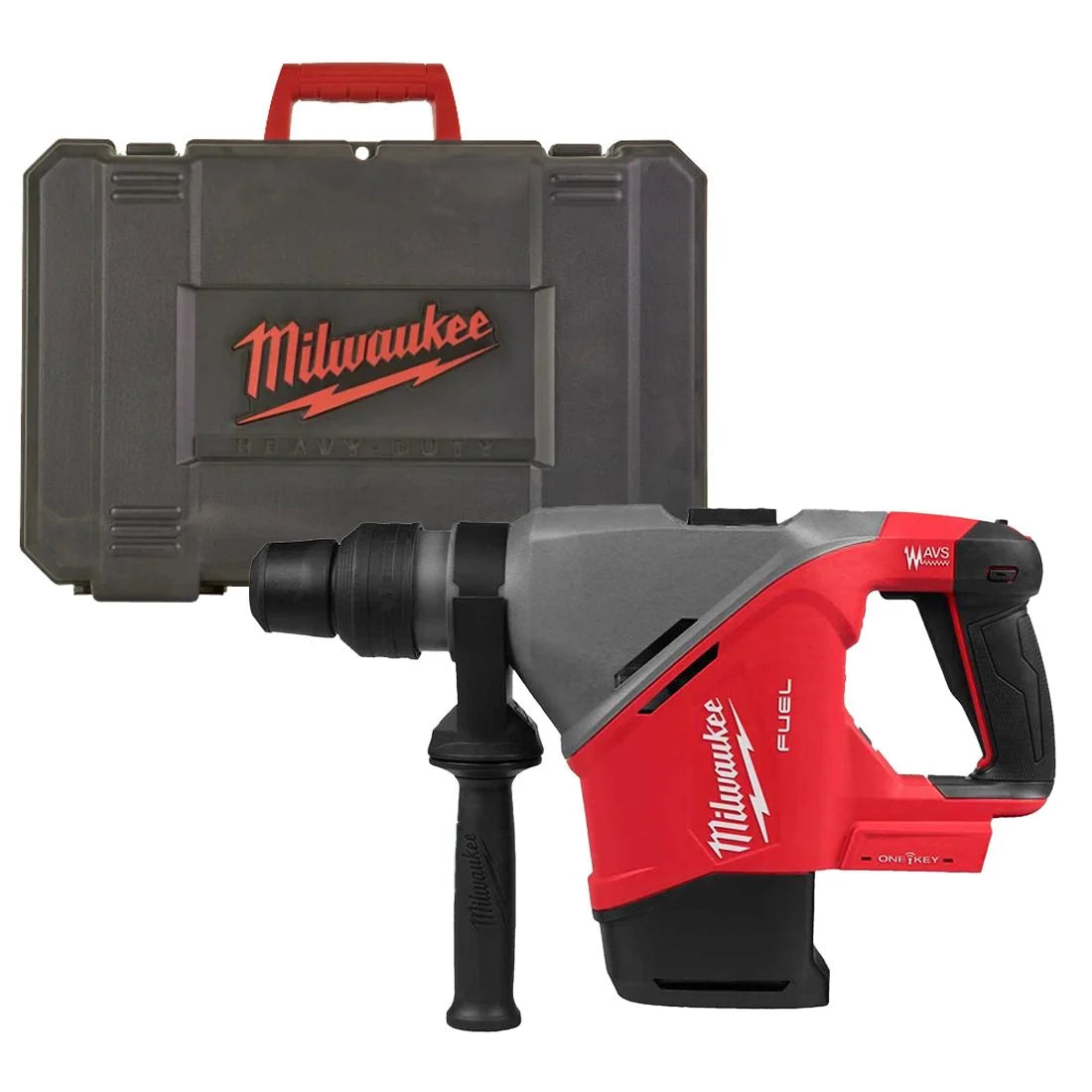

• 1 x Milwaukee M18 FUEL FHACO540 ONE-KEY™ SDS-Max 40mm Rotary Hammer Drill
• 1 x Milwaukee Carry Case
• Battery and charger sold separately
