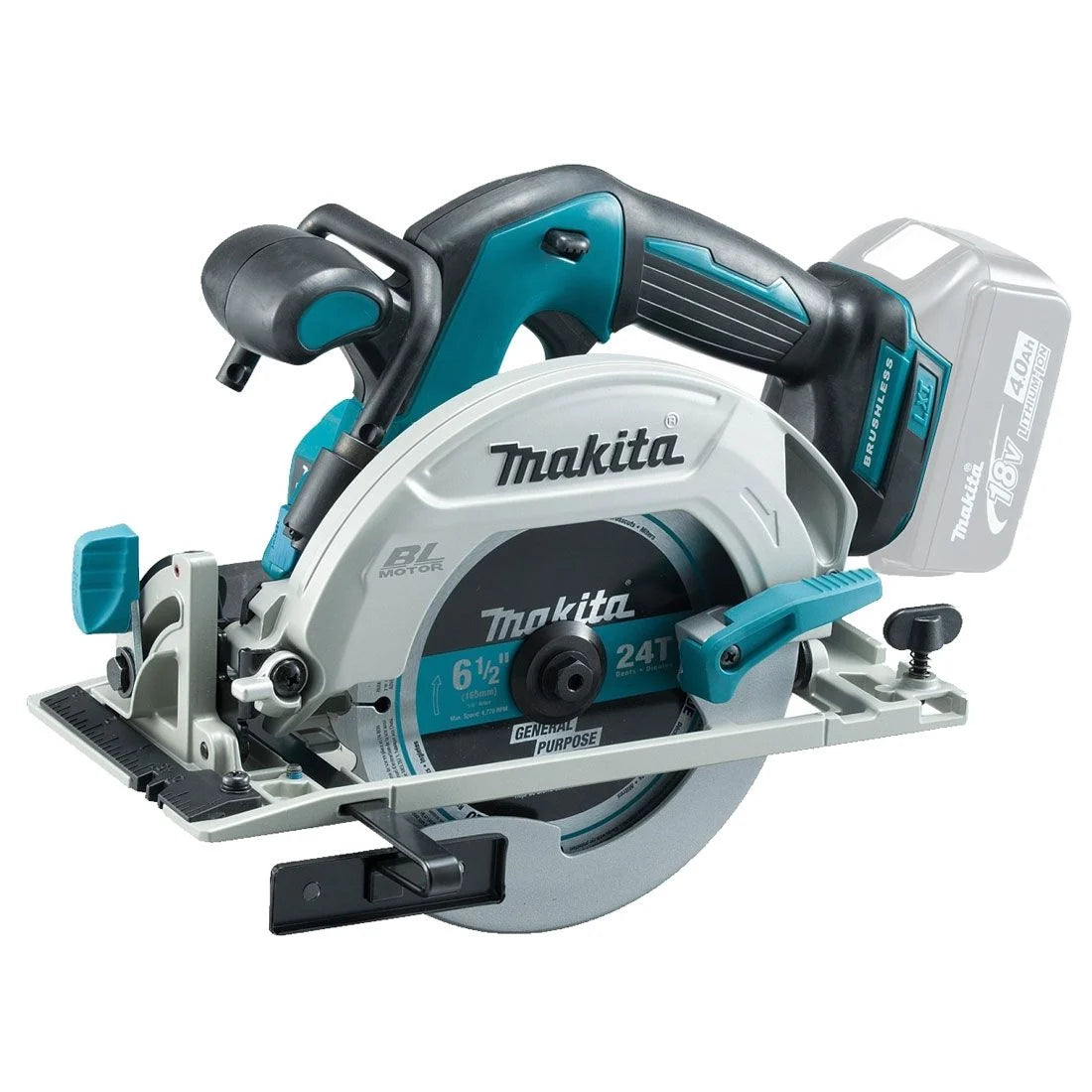

Makita DHS680Z 18V LXT Brushless 165mm Cordless Circular Saw – Body Only

The Makita DHS680Z 18V LXT Brushless Circular Saw is a powerful, lightweight cordless saw designed for professional carpentry, joinery, construction and general woodworking applications. Featuring a 165mm blade, efficient brushless motor and Automatic Speed Control, it delivers fast, accurate cutting with excellent runtime and performance.

With a maximum cutting depth of 57mm at 90°, the DHS680Z is ideal for cutting timber, sheet materials and other suitable woodworking products. Its compact, ergonomic design provides excellent handling, while the large base improves stability and cutting accuracy.

Supplied body only – Makita 18V LXT batteries and chargers sold separately.

Efficient Brushless Motor

The Makita DHS680Z features a high-efficiency brushless motor that reduces friction and energy loss compared with traditional brushed motors. This helps improve battery runtime, cutting performance and overall tool durability while reducing maintenance requirements.

Delivering up to 5,000rpm, the saw provides fast and clean cutting across a wide range of professional applications.

Automatic Speed Control

Makita's Automatic Speed Control technology automatically adjusts cutting speed and torque according to the load. This ensures the saw delivers additional power when required while using battery energy efficiently during lighter applications.

An electronic current limiter provides overload protection, while soft start ensures smooth and controlled start-up.

Accurate & Convenient Cutting

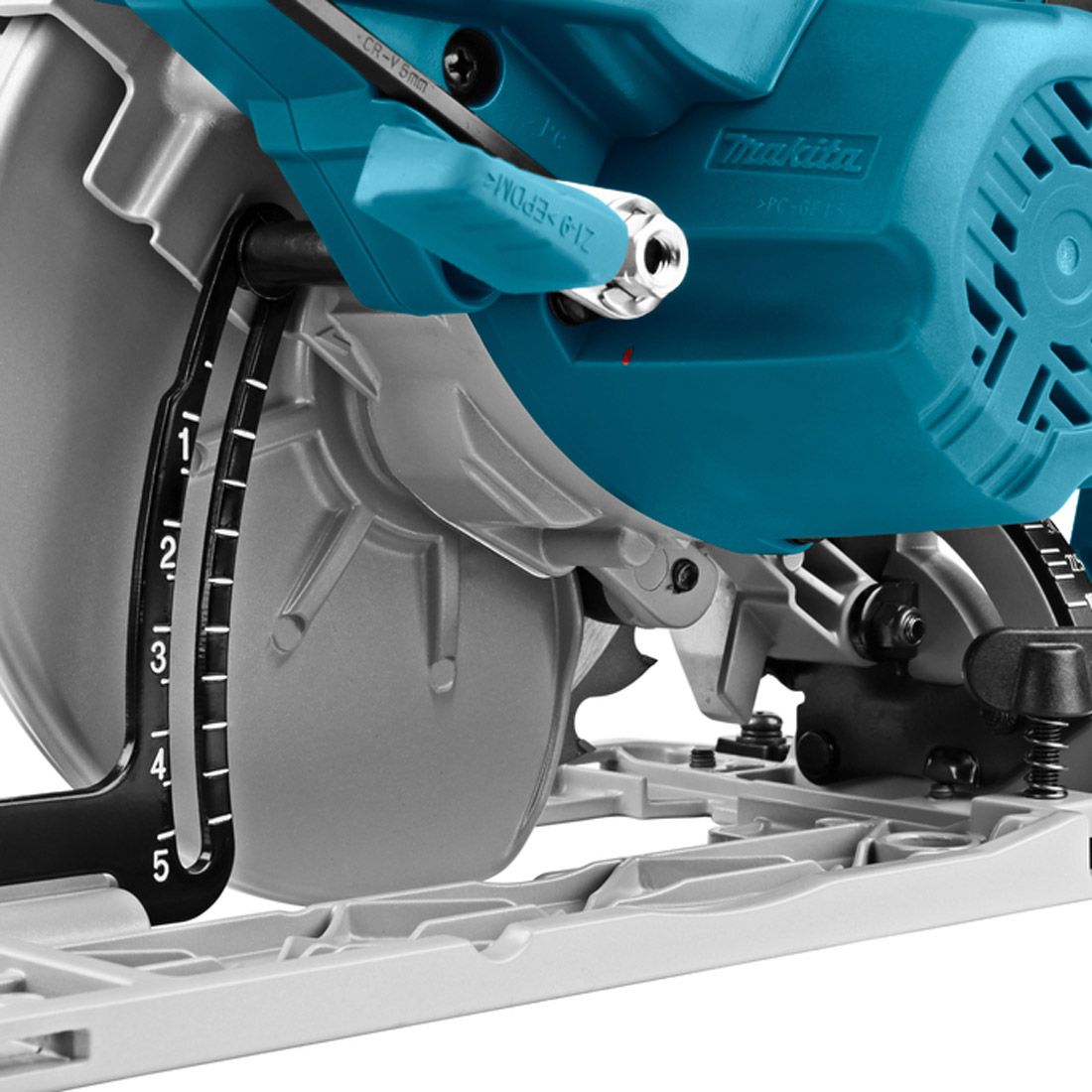

The DHS680Z offers a maximum cutting capacity of 57mm at 90°, 41mm at 45° and 37mm at 50°, providing excellent versatility for straight and bevel cuts.

Twin LED work lights illuminate the cutting area, while the integrated blower removes sawdust from the cutting line for improved visibility. A three-stage battery indicator also allows users to quickly monitor remaining battery charge.

Key Features

• Powerful 18V LXT brushless circular saw
• 165mm blade diameter
• Maximum 57mm cutting depth at 90°
• Up to 5,000rpm
• Automatic Speed Control adjusts performance under load
• Efficient brushless motor for improved runtime and durability
• Soft-start function
• Electronic current limiter for overload protection
• Twin LED work lights
• Blower keeps the cutting line clear
• Three-stage battery charge indicator
• Large base for improved stability
• Ergonomic soft-grip handle
• Integrated tool hanger
• Large lock-off lever for improved safety
• Optional guide rail adaptor available separately
• Compatible with Makita 18V LXT batteries

Specifications

• Model: DHS680Z
• Voltage: 18V
• Battery Platform: Makita LXT
• Motor: Brushless
• Blade Diameter: 165mm
• Blade Bore: 20mm
• Maximum Cut at 90°: 57mm
• Maximum Cut at 45°: 41mm
• Maximum Cut at 50°: 37mm
• No-Load Speed: 5,000rpm
• Maximum Output: 680W
• Overall Length: 350mm
• Net Weight: 3.3kg

Noise & Vibration

• Sound Pressure: 83dB(A)
• Sound Power: 94dB(A)
• Noise Uncertainty: 3dB(A)
• Wood Cutting Vibration: 2.5m/s²
• Vibration Uncertainty: 1.5m/s²

The Makita DHS680Z 165mm Cordless Circular Saw is an excellent choice for tradespeople looking for a powerful, efficient and easy-to-handle 18V brushless circular saw for accurate professional timber cutting.
