HIKOKI C3612DRAW4Z 36V 305MM COMPOUND MITRE SAW BODY

HiKOKI C3612DRAW4Z 36V MULTI VOLT 306MM BRUSHLESS MITRE SAW BODY

The HiKOKI C3612DRA 36V Multi Volt Brushless 305mm Sliding Compound Mitre Saw is a powerful and highly versatile cutting solution, ideal for demanding applications.
Its dual bevel design allows cuts at 45° to both the left and right, offering maximum flexibility on the job.

What truly sets this saw apart is HiKOKI’s Torque Boost Technology, which intelligently combines high-speed and high-torque motor modes for exceptional performance.
Thanks to an advanced motor structure, the tool automatically switches between modes to deliver the optimal balance of speed and torque based on the task at hand.

With Torque Boost engaged, the saw delivers up to 1.7 times more torque and speed, enabling smoother cuts and preventing stalling under heavy load.
The Auto Switch Mode further enhances efficiency by adjusting the no-load speed according to the cutting application.
For continuous, high-demand tasks, High Torque Mode delivers up to 1.9 times more work per battery charge compared to Auto Mode, while also helping to prevent overheating of both the motor and battery.

FEATURES

Dual bevel with 45° to the left and right
Convenient bevel adjustment on the front

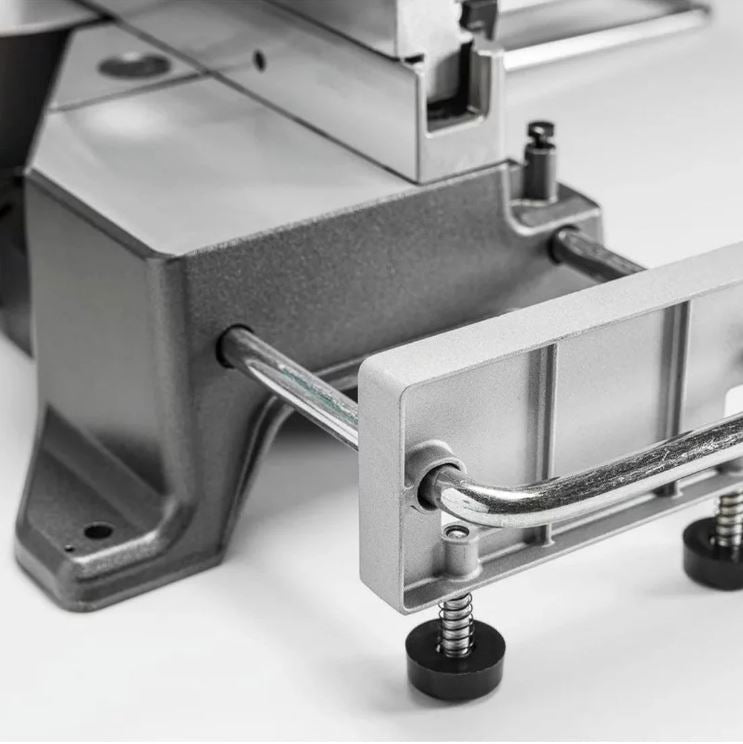

The table can be extended on the right and the left for sawing wide workpieces
Positive stops for fast and accurate mitre adjustments

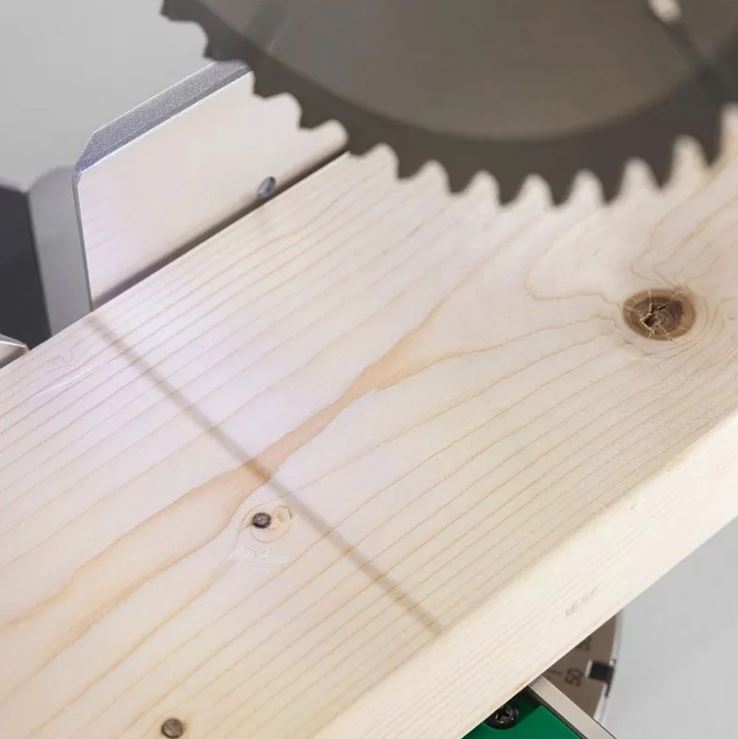

Shadow line technology perfectly marks the cutting line without adjument efforts for high-precision cuts
Torque Boost motor technology: Auto switch mode for fastest cuts and automatic detection of the right motor setting
Torque mode for powerful and battery saving cuts

SPECIFICATIONS:

Battery Voltage: 36V MultiVolt
Blade Diameter: 305 mm
Blade Bore: 30 mm
Mitre Angle Capacity (left / right): 0-45 ° / 0-57 °
Bevel Angle Capacity (left and right): 0-45 °
Cutting Capacity at 0°: 105 x 312 mm
Cutting Capacity at 45° Mitre Left Or Right: 105 x 220 mm
Cutting Capacity at 57° Mitre Right: 105 x 170 mm
Cutting capacity at 45° Bevel Left: 68 x 312 mm
Cutting capacity at 45° Bevel Right: 43 x 312 mm
Cutting capacity at 45° Mitre Left Or Right & 45° Bevel Left: 68 x 220 mm
Cutting capacity at 45° mitre left or right and 45° Bevel Right: 43 x 220 mm
No-load Speed In Auto Switch / High Torque Mode: 4000 / 3200 rpm
Dimensions (L x W x H): 873 x 916 x 724 mm
Weight (without battery): 25.2 kg

COMES WITH:

1 x C3612DRA Mitre Saw Body Only
1 x Dust bag
1 x Vice Assembly
1 x 8mm Hex Bar wrench
1 x Holder
1 x TCT Saw Blade 305mm
