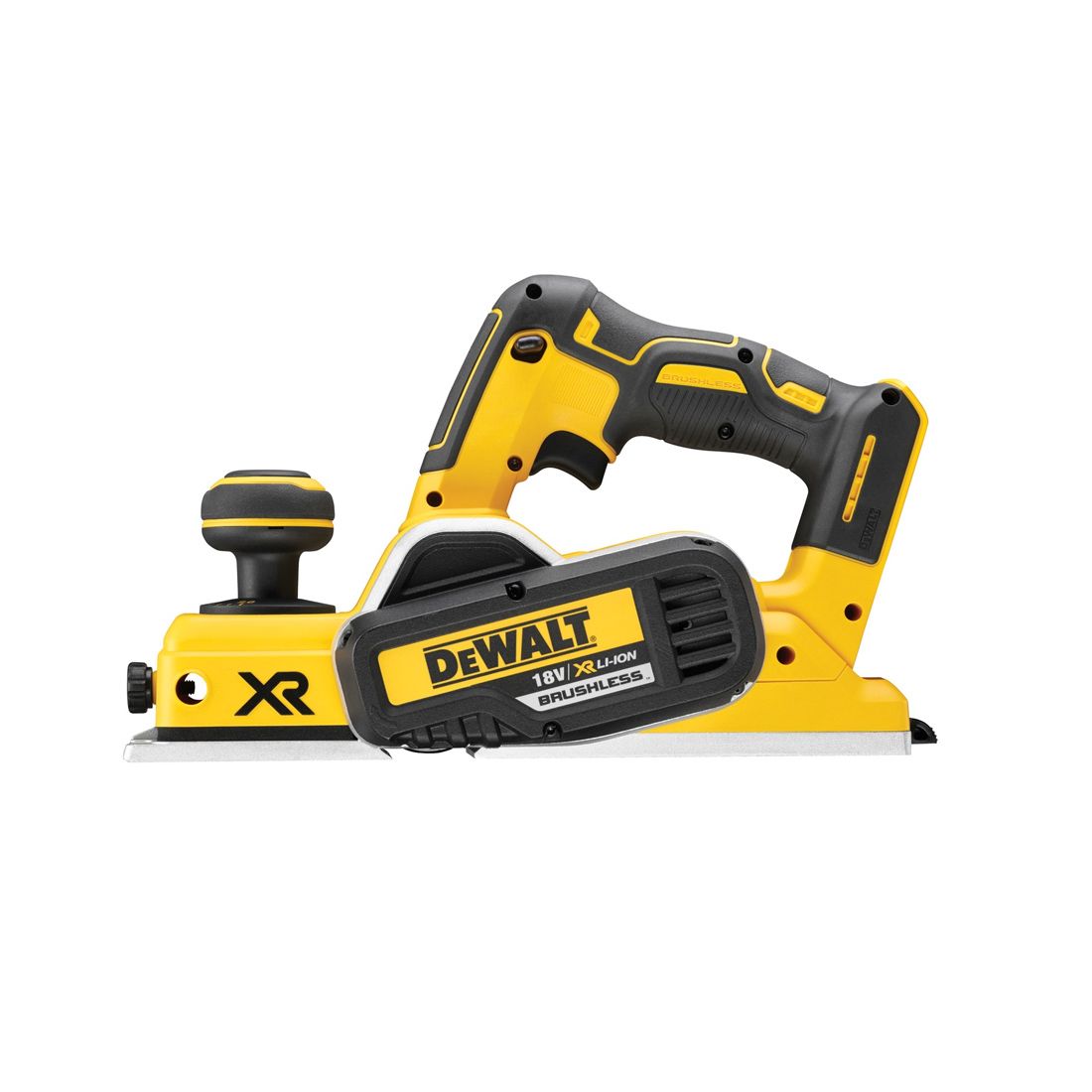

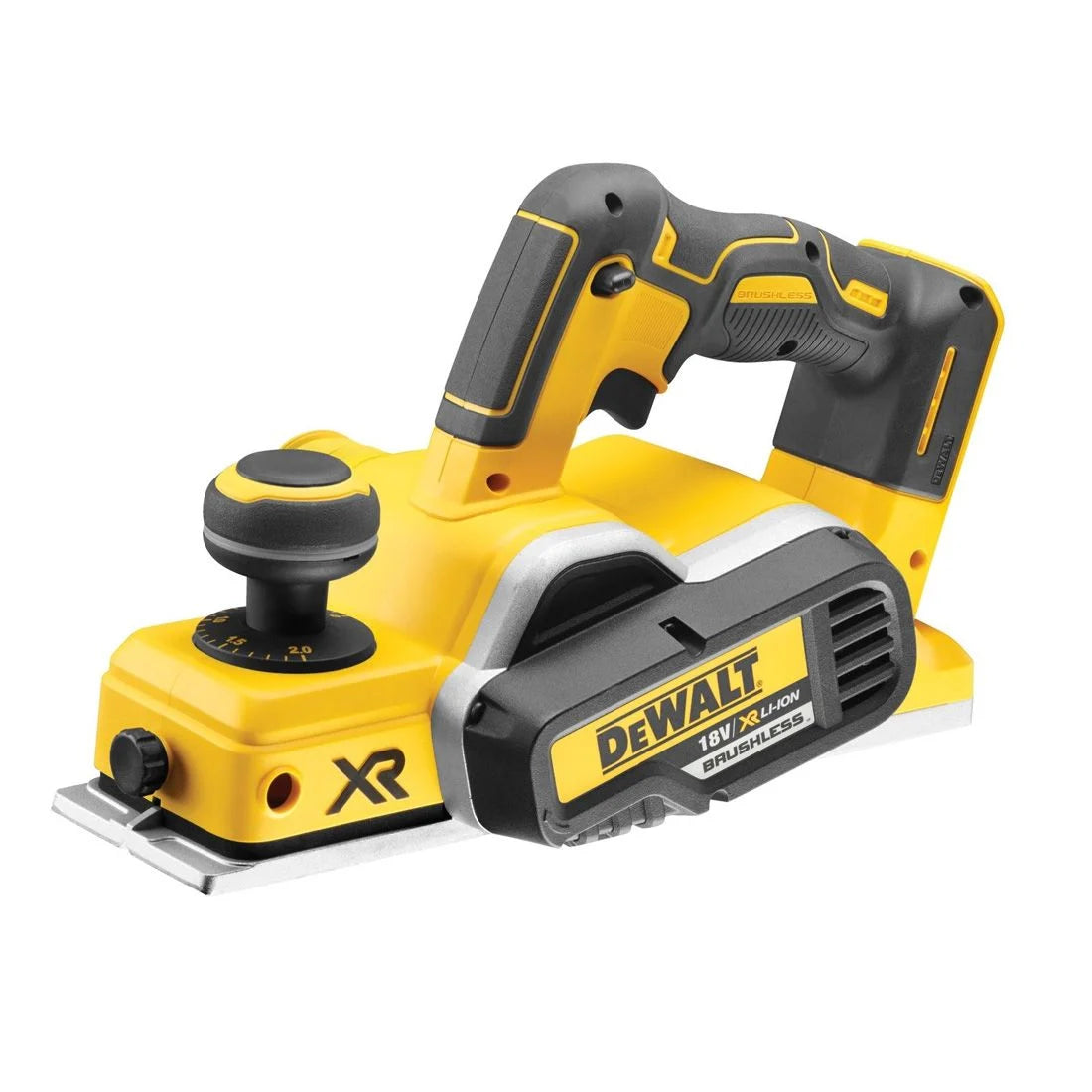

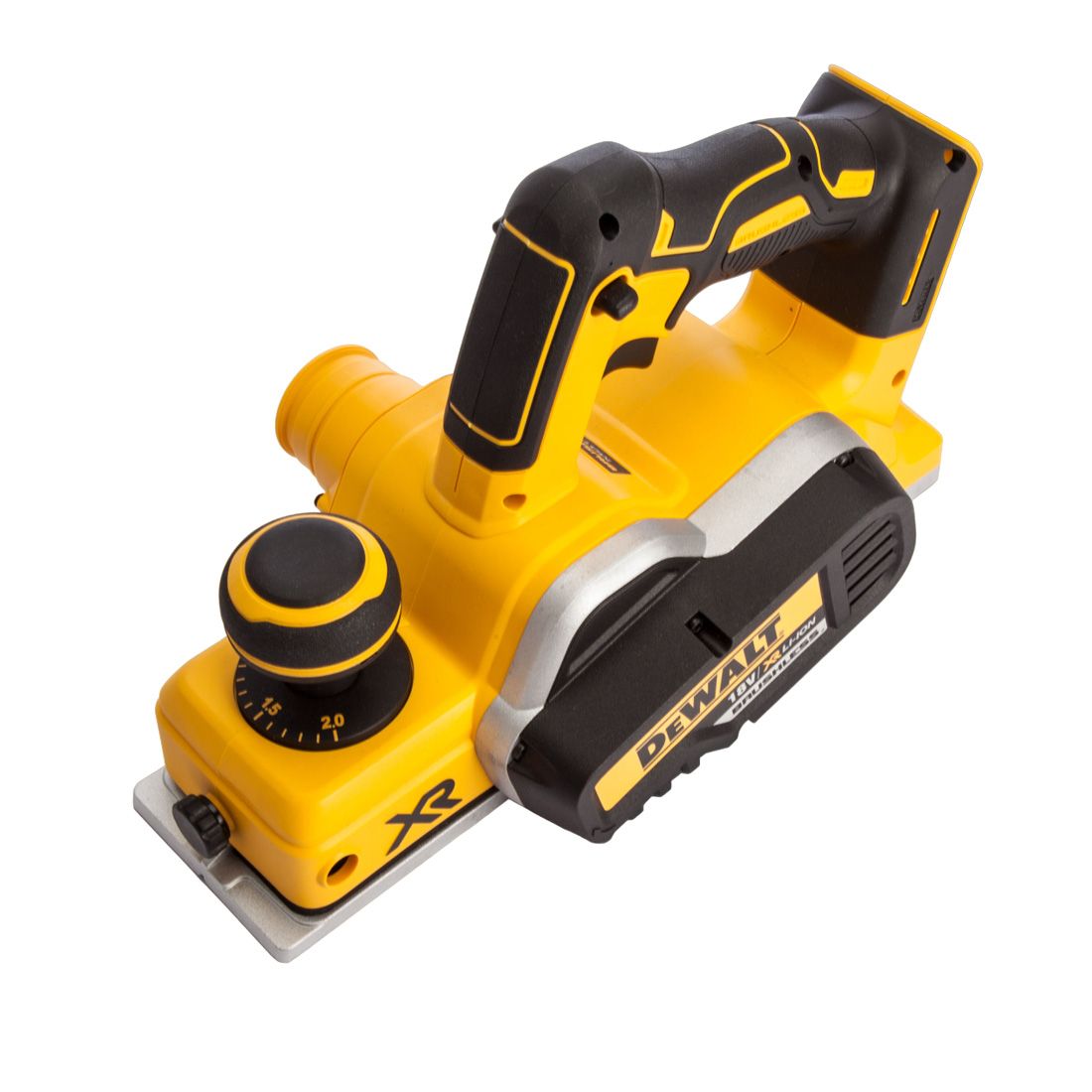

DeWalt DCP580N-XJ 18V XR 82mm Brushless Cordless Planer – Body Only

The DeWalt DCP580N-XJ 18V XR Brushless Planer is a powerful and compact cordless planer designed for professional carpentry, joinery and woodworking applications. Featuring an efficient XR brushless motor, an 82mm planing width and up to 2mm cutting depth, it delivers fast, accurate material removal without the restrictions of a power cable.

The lightweight, well-balanced design makes the DCP580 comfortable for both horizontal and vertical planing. Twin 82mm tungsten carbide tipped reversible blades provide a clean, consistent finish, while convenient onboard blade and Torx key storage makes blade changes quick and straightforward.

Precise 2mm Cutting Depth

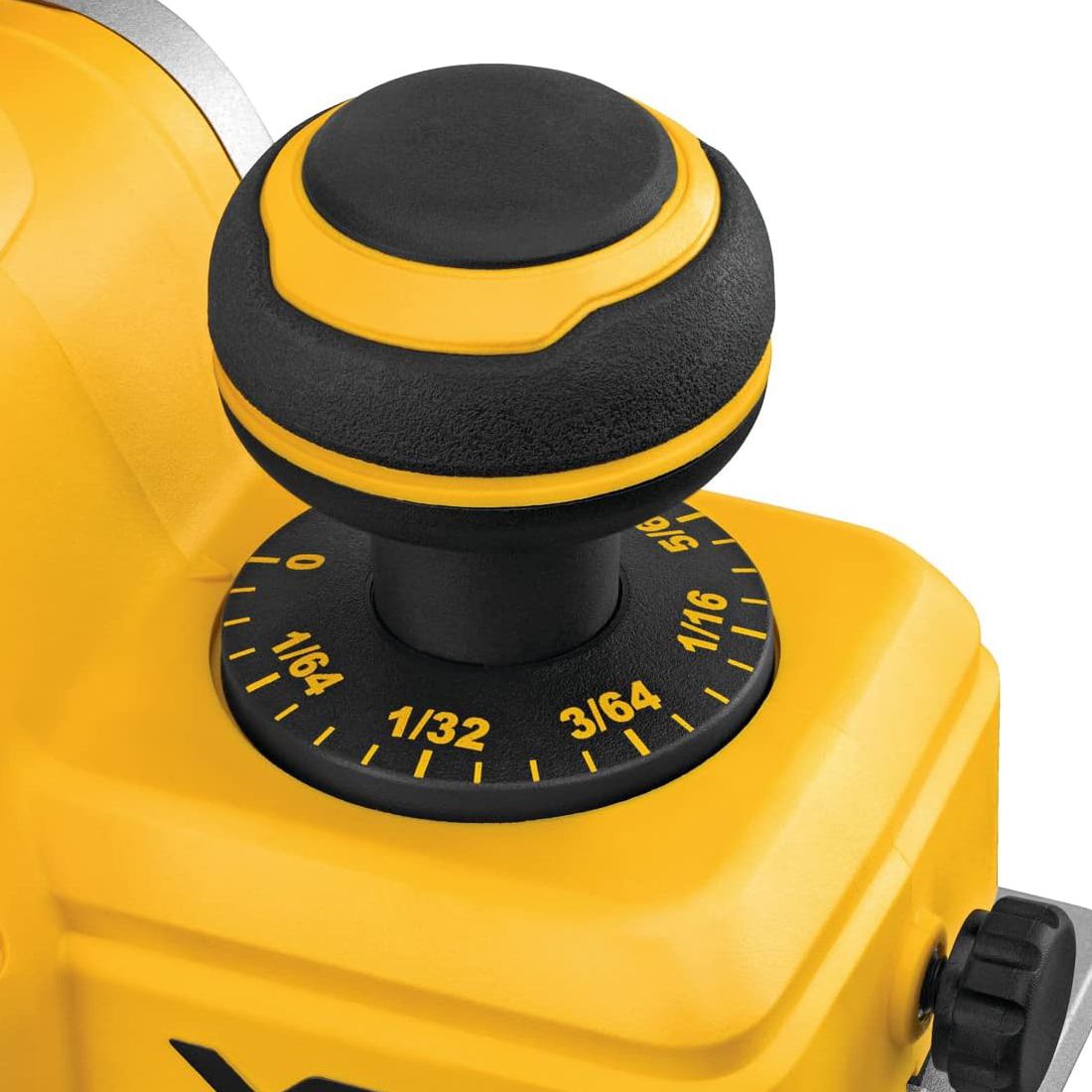

The DCP580 can remove up to 2mm of material per pass, making it suitable for trimming doors, fitting timber, levelling surfaces and carrying out general site adjustments. The indexed depth adjustment provides precise 0.1mm increments, allowing accurate control over material removal.

With a 9mm maximum rebate depth, the planer is also ideal for creating rebates and completing minor alterations during installation and finishing work.

Brushless XR Performance

DeWalt's efficient brushless motor delivers up to 15,000rpm, providing powerful cutting performance while maximising battery runtime and tool life. The front and rear shoes are precision-machined for improved accuracy and consistent results.

An integrated AirLock-compatible dust extraction port allows connection to compatible DeWalt dust extraction equipment or the optional DWV9390-XJ dust bag, helping maintain a cleaner working environment.

Supplied body only – DeWalt 18V XR batteries and chargers sold separately.

Key Features

• Powerful 18V XR brushless motor
• 82mm planing width
• Maximum 2mm cutting depth
• Precise depth adjustment in 0.1mm increments
• Up to 9mm rebate capacity
• High-speed 15,000rpm operation
• Twin 82mm reversible tungsten carbide tipped blades
• Onboard blade and Torx key storage

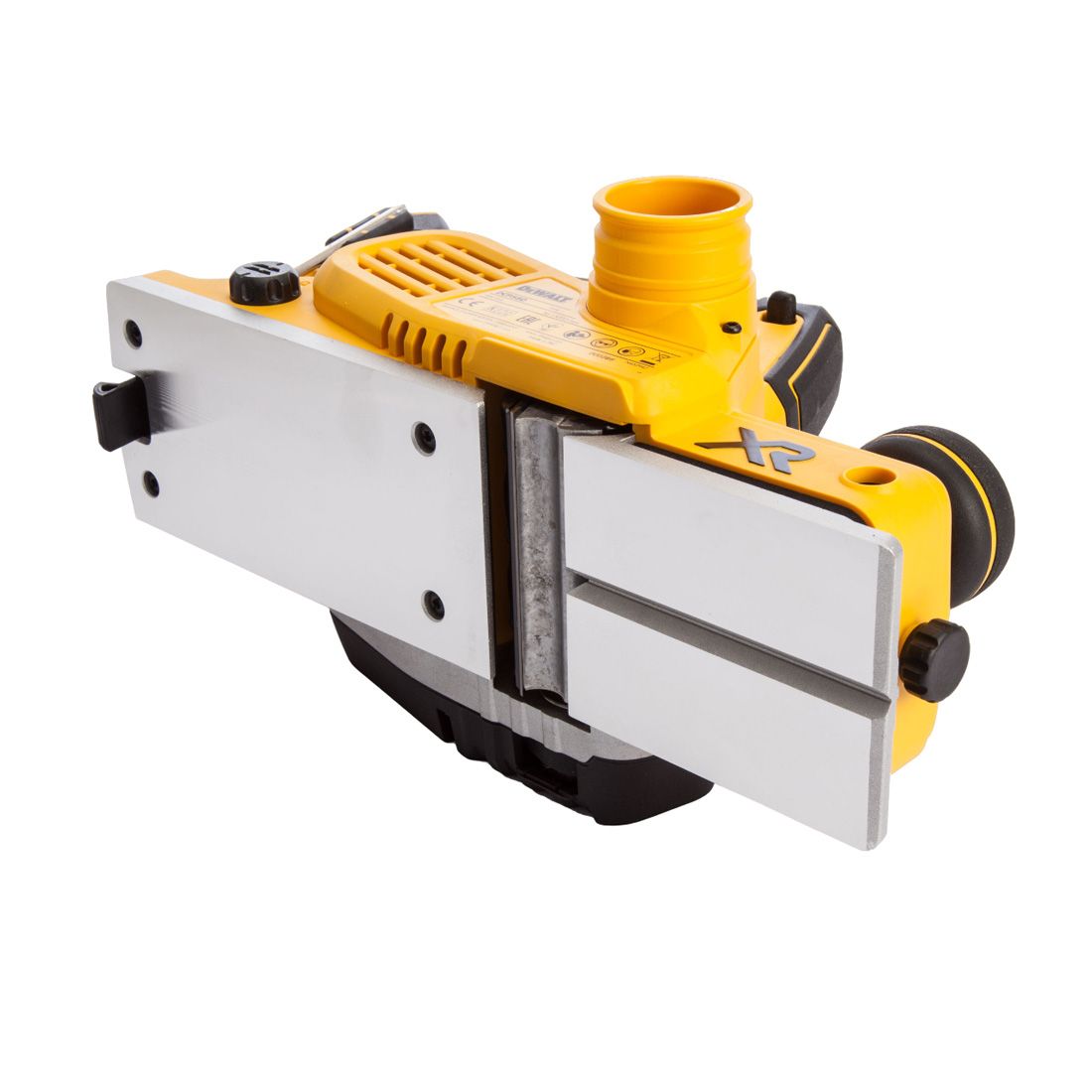

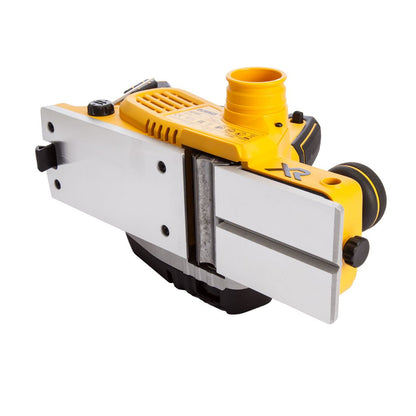

• Precision-machined front and rear shoes
• Soft-grip handle for improved comfort and control
• Well-balanced design for horizontal and vertical planing

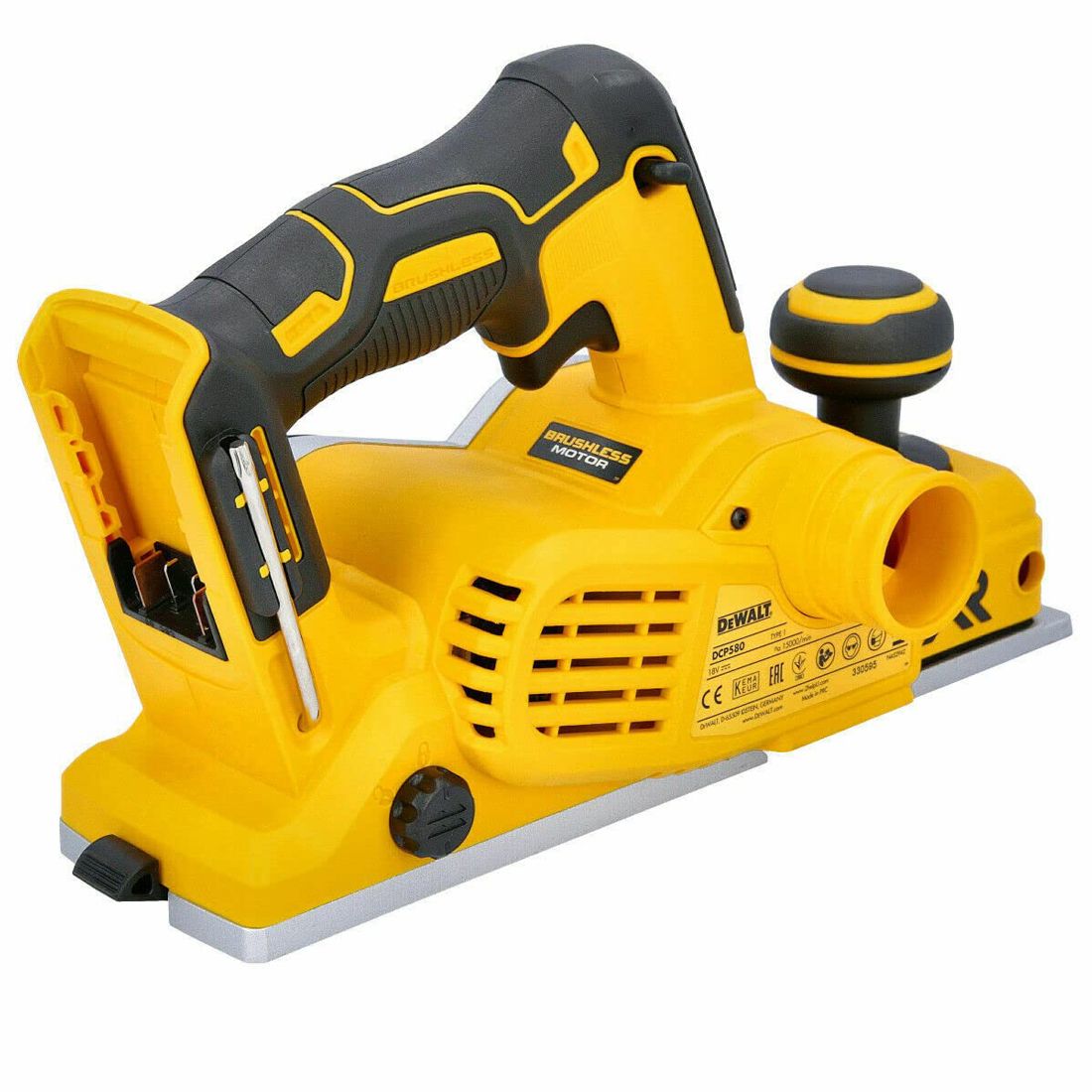

• AirLock-compatible dust extraction port
• Foot lock-off protects the work surface when the tool is placed down
• Compatible with DeWalt 18V XR batteries

Specifications

• Model: DCP580N-XJ
• Voltage: 18V
• Battery Platform: DeWalt XR Li-Ion
• Motor: Brushless
• Planing Width: 82mm
• Maximum Cutting Depth: 2.0mm
• Maximum Rebating Depth: 9.0mm
• No-Load Speed: 15,000rpm
• Shoe Length: 295mm
• Drum Diameter: 48mm
• Tool Length: 370mm
• Weight: 2.5kg

Noise & Vibration

• Sound Pressure: 88dB(A)
• Sound Power: 99dB(A)
• Hand/Arm Vibration: <2.5m/s²
• Vibration Uncertainty: 1.5m/s²

The DeWalt DCP580N-XJ Cordless Planer is an excellent choice for tradespeople looking for a powerful 18V brushless planer with precise depth control, 82mm cutting width and 9mm rebate capacity for professional woodworking and site applications.
