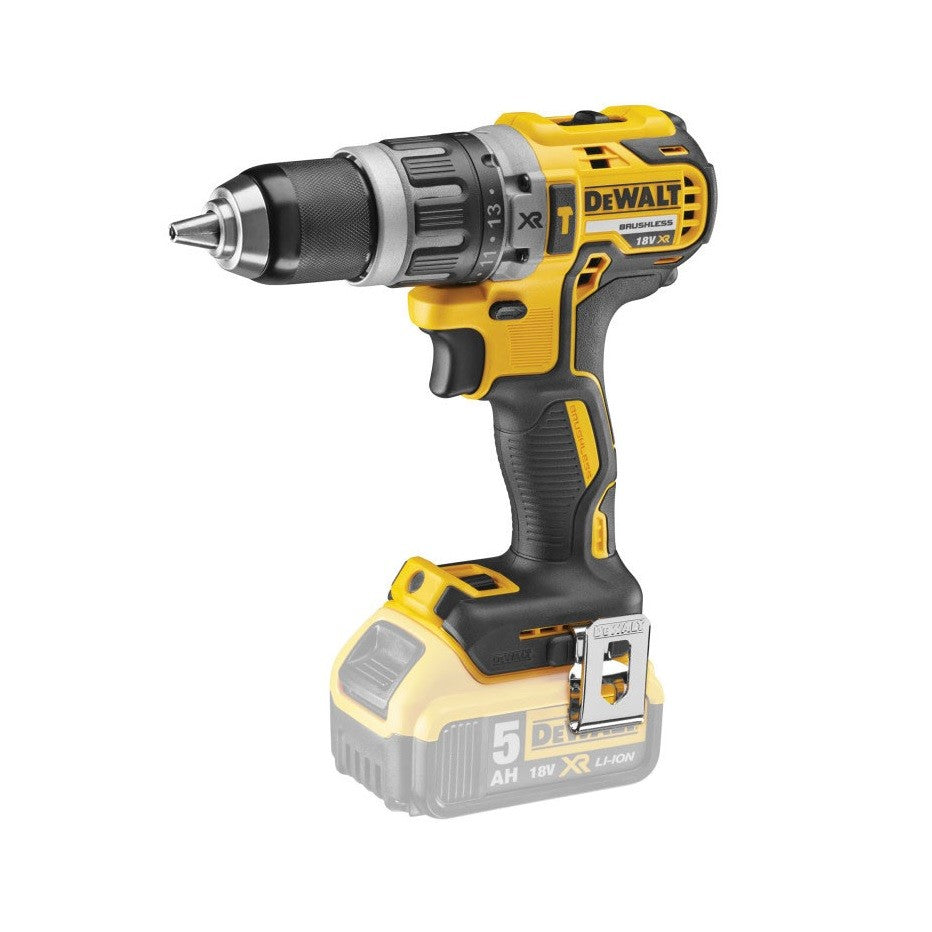

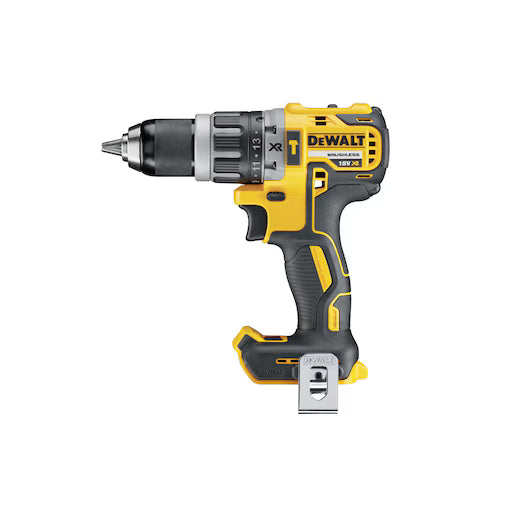

DEWALT DCD796N 18V XR COMBI DRILL BRUSHLESS BODY ONLY

DeWalt DCD796N 18V XR Brushless Combi Drill Body Only

The DeWalt DCD796N 18V XR Brushless Combi Drill is a compact yet powerful cordless drill driver designed for professional tradespeople and demanding DIY users. Featuring an advanced brushless motor, this versatile combi drill delivers exceptional performance, increased runtime, and a longer motor life, making it ideal for drilling into wood, metal, masonry, and driving screws with precision.

Producing up to 70Nm of hard torque, the DCD796N easily handles a wide range of drilling and fastening applications. The 2-speed all-metal transmission provides reliable performance and durability, while the 15-position adjustable clutch ensures accurate screwdriving into a variety of materials without damaging fixings or work surfaces.

Its compact 190mm body length and lightweight ergonomic design make it ideal for working in confined spaces or overhead, reducing user fatigue during prolonged use. The rubber overmould grip provides enhanced comfort and control, while improved airflow keeps the motor running cooler for increased efficiency and durability.

A bright 3-position LED work light, mounted at the base of the tool, improves visibility in dark work areas and features a delay function to illuminate the workspace after the trigger is released. The intelligent variable speed trigger offers precise control, while the integrated hammer drill mode allows effortless drilling into masonry.

Compatible with the entire DeWalt 18V XR Lithium-Ion battery platform, the DCD796N is supplied as a body only, making it the perfect addition for users who already own DeWalt XR batteries and chargers.

Body only – battery and charger sold separately.

Key Features

• Genuine DeWalt DCD796N 18V XR Brushless Combi Drill
• High-efficiency brushless motor for longer runtime and motor life
• Delivers up to 70Nm hard torque
• Compact 190mm body for working in confined spaces
• Lightweight ergonomic design with rubber overmould grip
• 2-speed all-metal transmission for durability and performance
• 15-position adjustable clutch for precise screwdriving
• Drill, screwdriver and hammer drill functions
• Intelligent variable speed trigger for maximum control
• Bright 3-position LED work light with delay feature
• Improved motor cooling for enhanced performance
• Compatible with all DeWalt 18V XR Lithium-Ion batteries

Specifications

• Model: DCD796N
• Voltage: 18V
• Battery Platform: DeWalt XR Lithium-Ion
• Motor: Brushless
• Power Output: 460W
• Maximum Hard Torque: 70Nm
• Maximum Soft Torque: 27Nm
• Torque Settings: 15 + Drill
• Transmission: 2-Speed All-Metal
• No Load Speed (Low): 0–550rpm
• No Load Speed (High): 0–2,000rpm
• Impact Rate (Low): 0–9,350bpm
• Impact Rate (High): 0–34,000bpm
• Chuck Type: 13mm Single Sleeve Keyless All-Metal
• Chuck Capacity: 1.5–13mm
• Maximum Drilling Capacity (Wood): 40mm
• Maximum Drilling Capacity (Metal): 13mm
• Maximum Drilling Capacity (Masonry): 13mm
• Brake: Electric
• Rotation: Forward / Reverse
• LED Work Light: 3-Position Base Mounted with Delay
• Overall Length: 190mm
• Weight (with 1.5/2.0Ah Battery): 1.6kg
• Weight (with 3.0/4.0/5.0Ah Battery): 1.8kg

Noise & Vibration

• Sound Pressure Level (LpA): 89dB(A)
• Sound Power Level (LWA): 100dB(A)
• Sound Uncertainty (K): 3dB(A)
• Vibration (Drilling into Concrete): 11.5m/s²
• Vibration Uncertainty (Concrete): 1.6m/s²
• Vibration (Drilling into Metal): <2.5m/s²
• Vibration Uncertainty (Metal): 1.5m/s²
