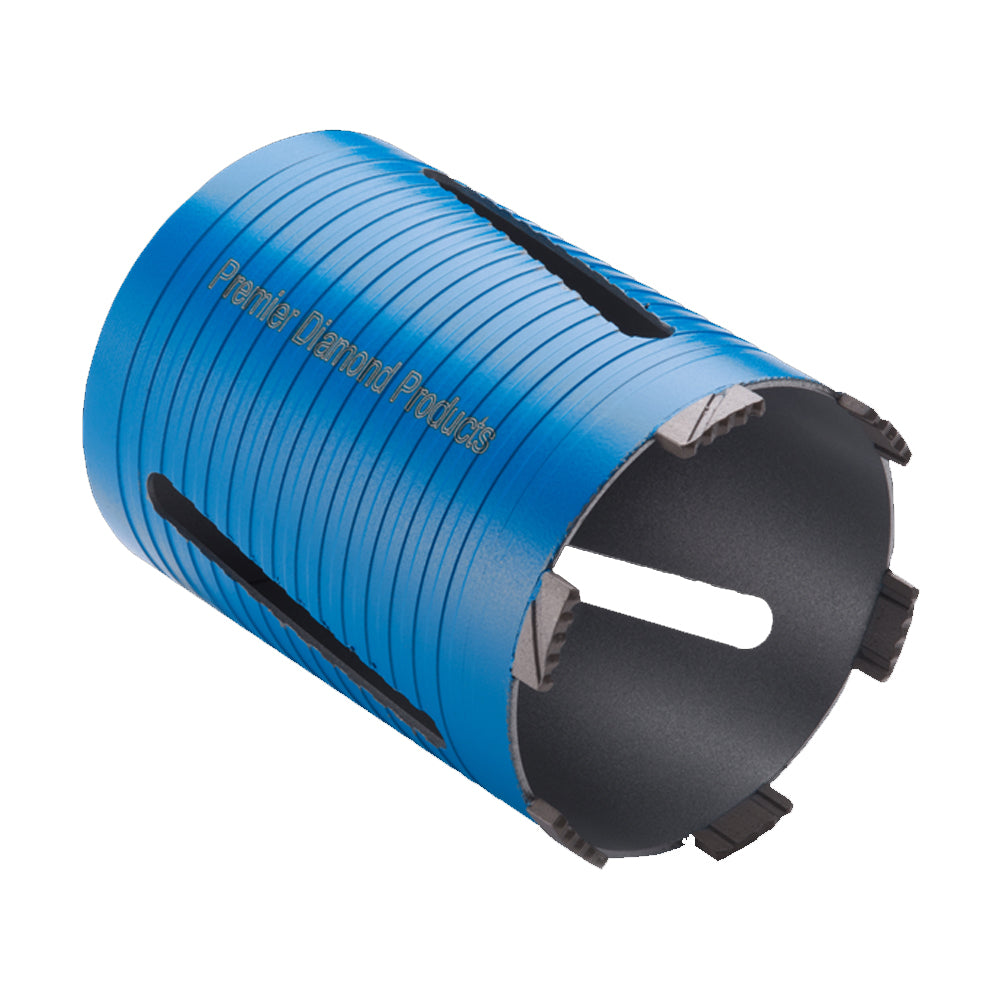

Premier Diamond Products P5-EDDC EVODRILL Premium Dry Diamond Cores

The Premier Diamond Products P5-EDDC EVODRILL range consists of premium-performance dry diamond cores engineered for drilling both conventional building materials and significantly harder substrates.

EVODRILL cores feature laser-welded segments incorporating advanced metal-bond technology and high-grade diamonds. Unlike conventional dry cores intended mainly for brick and block, the P5-EDDC range is also designed for demanding materials including lightly reinforced concrete, engineering bricks, clay products and Indian sandstone.

FEATURES

• Premium / 5-star performance level
• Professional EVODRILL dry diamond core range
• High-grade diamond concentration
• Advanced metal-bond segment technology
• Laser-welded segments
• Turret-design segments
• Spiral barrel construction
• Spiral design improves debris removal
• Increased airflow to the cutting edge
• Designed for faster, more efficient drilling
• Suitable for conventional and harder building materials
• Capable of drilling lightly reinforced concrete
• 1/2" BSP female thread
• Wide diameter range from 22mm to 202mm
• Individual cores plus a 5-piece EVODRILL set available

SUITABLE FOR DRILLING

• Class A engineering bricks
• Class B engineering bricks
• Standard facing bricks
• Clay products
• General-purpose concrete
• Lightly reinforced concrete
• Lightweight concrete blocks – 3 to 7 N
• Medium-density concrete blocks – 7 to 12 N
• Solid-density concrete blocks – 12+ N
• Abrasive sandstone
• Indian sandstone

SPECIFICATION

• Brand: Premier Diamond Products
• Range: EVODRILL
• Model / Series: P5-EDDC
• Product Type: Premium Dry Diamond Core
• Performance Level: Premium / 5-Star
• Diameter Range: 22–202mm
• Standard Core Length: 150mm
• Extended Core Length: 300mm on 22, 25 & 28mm sizes
• Segment Attachment: Laser Welded
• Segment Design: Turret
• Barrel: Spiral
• Thread: 1/2" BSP Female
• Drilling Method: Dry
• Reinforced Concrete Capability: Light reinforcement
• Recommended Machine: Purpose-made dry diamond core drill
• Alternative Machine: SDS Plus drill with slipping clutch
• Recommended Minimum Core Drill Power: 850W
• Hammer Action: Do not use

INDIVIDUAL CORE RANGE

The smaller 22mm, 25mm and 28mm cores are 300mm long, while the 32–202mm cores are 150mm long.

MACHINE SUITABILITY

For maximum performance, Premier Diamond Products recommends a purpose-made dry diamond core drill with a slipping clutch, rated at a minimum of 850W and capable of providing the high RPM required for effective diamond cutting.

Compatible SDS Plus drills with a slipping clutch can also be used, although their lower rotational speed may result in slower drilling, particularly in hard or damp materials.

Important: Dry diamond cores must not be operated in hammer mode.
